Public Access Key - 2023

Saturday, March 25, 2023   Chris Farris   AWS CloudSecurity Technology
Barcelona was the closest image I could find for Pollença

Earlier this week, I did a big no-no. I deliberately published an AWS Access Key and its associated secret to GitHub.

While I suspect many of you now think, “what a horrible cloud security person he is”, I figured I’d share my learnings.

Timeline of events & quarantine

Time (EDT) Event UserAgent
March 23rd, 8:51 AM Key Committed & Pushed
March 23rd, 8:51:50 AM First usage of AWS GetCallerIdentity from 35.83.131.170 python-requests/2.28.2
March 23rd, 8:53:07 AM iam:AttachUserPolicy -
AWSCompromisedKeyQuarantineV2 was applied to the user
March 23rd, 8:53:57 AM Email Notice from AWS Support
March 23rd, 8:56:50 AM Second usage of AWS GetCallerIdentity from 54.39.190.134 python-requests/2.28.2
March 23rd, 8:56:51 AM Third usage of AWS GetCallerIdentity from 54.39.187.211 python-requests/2.28.2
March 23rd, 8:57:20 AM Fourth usage of AWS GetCallerIdentity from 54.39.182.0 python-requests/2.28.2
March 23rd, 8:58:08 AM Fifth usage of key & enumeration from 3.109.16.140 aws-sdk-go-v2/1.17.6 os/linux
March 23rd, 4:03:55 PM Final “threat actor” finds key and attempts use AWSPowerShell.Common/4.1.90

The first GetCallerIdentity came from an AWS IP Address (35.83.131.170). That could have been AWS performing a check of the user. The second GetCallerIdentity came from an OVH IP Address.

The CloudTrail event for the AttachUserPolicy was interesting:

{
    "eventVersion": "1.08",
    "userIdentity": {
        "type": "IAMUser",
        "principalId": "AIDA2HONFREDACTED",
        "arn": "arn:aws:iam::703REDACTED:user/test1",
        "accountId": "703REDACTED",
        "accessKeyId": "ASIA2HONFREDACTED",
        "userName": "test1",
        "sessionContext": {
            "sessionIssuer": {},
            "webIdFederationData": {},
            "attributes": {
                "creationDate": "2023-03-23T12:53:07Z",
                "mfaAuthenticated": "false"
            }
        },
        "invokedBy": "AWS Internal"
    },
    "eventTime": "2023-03-23T12:53:07Z",
    "eventSource": "iam.amazonaws.com",
    "eventName": "AttachUserPolicy",
    "awsRegion": "us-east-1",
    "sourceIPAddress": "AWS Internal",
    "userAgent": "AWS Internal",
    "requestParameters": {
        "userName": "test1",
        "policyArn": "arn:aws:iam::aws:policy/AWSCompromisedKeyQuarantineV2"
    }
}

We see from the userIdentity.arn that the compromised user test1 was the principal that performed AttachUserPolicy; however, the IAM User only had the ReadOnlyAccess policy applied. The userIdentity.accessKeyId was an ASIA, which means that somehow, AWS used my compromised account credentials to perform an action they did not have permissions to do.

The “Mumbai (Krishna Nagar) Threat Actor”

Up to this point, the activity was related to “Is this real” or quarantining the key. The 3.109.16.140 “Threat Actor” is the first attempt to enumerate the environment.

eventSource eventName count
acm.amazonaws.com ListCertificates 16
ec2.amazonaws.com DescribeInstances 16
eks.amazonaws.com ListClusters 16
iam.amazonaws.com ListUsers 1
route53.amazonaws.com ListHostedZones 20
s3.amazonaws.com ListBuckets 16
ses.amazonaws.com ListIdentities 16
sns.amazonaws.com ListTopics 2
sts.amazonaws.com GetCallerIdentity 2

This is interesting behavior. They knew that IAM was a global service, but not S3 or Route53. They only listed SNS Topics in two regions, ap-south-1 and ap-southeast-1. A ControlTower SCP denied the ListTopics in ap-south-1, so perhaps their script looks for that? The eks:ListClusters were also denied by SCP, but the EKS service hasn’t yet done the work to notify if a deny is related to an SCP.

All in all, the first GetCallerIdentity occurred at 08:58:08 EDT, and the last call from this address was 08:58:20 - a 12-second duration.

This seems like a somewhat sophisticated actor. They’re using a go based tool. They enumerated a handful of interesting resources like ACM Certs and Route53 zones. Listing Identities in SES can be useful from both a phishing target perspective and from a “can I turn this account into a spam farm” perspective. I’d be curious if they were using an known open-source tool.

The “Beauharnois Threat Actor”

OVH hosts this IP Address, and Splunk iplocation tells me it’s Beauharnois Canada (which is southwest of Montreal).

This actor was the second IP to ping my access key at 08:56:50. It continued to do so at longer intervals until I disabled the access key before I went to dinner.

  • 08:56:50 EDT
  • 08:58:15 EDT
  • 09:00:04 EDT
  • 09:02:02 EDT
  • 09:12:17 EDT
  • 09:32:18 EDT
  • 09:52:17 EDT
  • 10:52:03 EDT
  • 12:52:04 EDT
  • 13:09:48 EDT
  • 16:52:16 EDT
  • 17:09:40 EDT

The “Pollença Threat Actor”

By about 2 pm, I was sad that no one wanted to Crypto-mine with me. Then Pollença came along with their AWSPowerShell.Common/4.1.90.0 .NET_Core/6.0.5 OS/Microsoft_Windows_10.0.17763 PowerShellCore/7.-1 ClientAsync scripts.

Their MO was the check the region’s GetServiceQuota and DescribeAccountAttributes, then attempt to create a VPC. As that failed, it doesn’t look like they tried to create subnets or launch instances. Here is what they’d do in a typical region:

eventTime eventSource eventName
2023-03-23T20:04:11Z servicequotas.amazonaws.com GetServiceQuota
2023-03-23T20:04:11Z ec2.amazonaws.com DescribeAccountAttributes
2023-03-23T20:04:11Z ec2.amazonaws.com DescribeAvailabilityZones
2023-03-23T20:04:11Z ec2.amazonaws.com CreateInternetGateway
2023-03-23T20:04:11Z ec2.amazonaws.com CreateVpc
2023-03-23T20:04:11Z ec2.amazonaws.com DescribeVpcs
2023-03-23T20:04:11Z ec2.amazonaws.com DescribeVpcs
2023-03-23T20:04:12Z ec2.amazonaws.com DescribeInstanceTypeOfferings
2023-03-23T20:04:12Z ec2.amazonaws.com DescribeInstances

With both a ridiculous number of SCPs and AWS’s quarantine policy, this IP address was going to get nowhere. Still it tells me that I should give a little bit of attention to any abnormal GetServiceQuota or DescribeInstanceTypeOfferings API calls.

Breakdown of the initial actors

I only left the key active during the day while I was in front of a keyboard and watching in Splunk. It looks like maybe three to five “threat actors” (and I use that phrase a bit tongue-in-cheek) tried to use it.

City Country sourceIPAddress count Org
Beauharnois Canada 54.39.182.0 1 OVH
Beauharnois Canada 54.39.187.211 1 OVH
Beauharnois Canada 54.39.190.134 12 OVH
Las Vegas United States 34.125.126.163 1 Google
Mumbai (Krishna Nagar) India 3.109.16.140 105 AWS
Pollença Spain 185.245.254.176 313 Packethub
Portland United States 35.83.131.170 1 AWS

I’m going to try this again in a week or so. I’ll be curious if it’s the same group, or different IPs that will jump on this key.

AWS’s Responses

In the sixty or so hours since I published the key, I’ve received three emails from AWS. The first one came within two minutes of publishing the key. The other two came 24 and 48 hrs after AWS opened the first case.

The first email contained a friendly reminder to add my Security Contact to the account:

AWS Health includes the full name fields of recipient primary and/or alternate contacts of accounts to help with your business operations. The account 703REDACTED currently does not have a full name for the security contact associated with it. To enable this feature, please populate the name field of the security contact (and alternate contacts if you would like them addressed in relevant communication) via the Billing console or can be managed programmatically. For more information please visit https://aws.amazon.com/blogs/mt/programmatically-managing-alternate-contacts-on-member-accounts-with-aws-organizations/

The other interesting detail is (emphasis mine):

Step 4: [IMPORTANT] You must respond to the existing Support Case or create a new one to confirm completion of the steps above in order to restore access to your account, prevent suspension, and apply for a billing adjustment, if applicable.

Emails two and three look like this (also emphasis mine):

Dear AWS Customer,

We are following up with you, as your AWS Account may still be compromised. Please review the previous notice we have sent and take immediate action to secure your account. If you believe that your account is secured and there is no unauthorized access or usage, please contact us immediately by responding to this Support case.

This account compromise poses a security risk to your account (including other account users), and could lead to excessive charges from unauthorized activity. To protect your account from excessive charges, we have temporarily limited your ability to use some AWS services. To remove the limits, please follow the instructions provided in our initial notice.

If the unauthorized usage is not stopped we may suspend your AWS account. To further protect your account from excessive charges, we may terminate any suspected unauthorized resources on your account.

If you have any questions, please contact us by responding through this Support case.

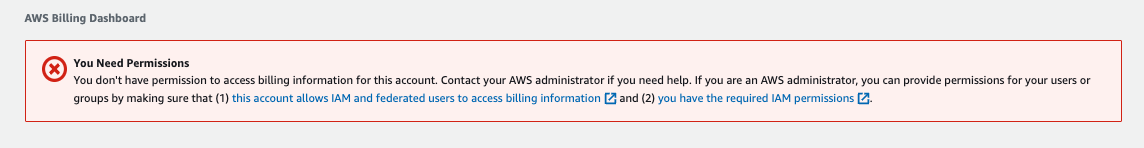

The first service I noticed I no longer have access to is billing. Billing Error

That’s all I’ve got for now. On Saturday afternoon I re-enabled the Access Key and I’m curious to see two things:

  1. What will AWS do as I continue to ignore their support cases?
  2. Will someone come along and try the key again?

Stay tuned for the exciting conclusion of “Chris f–s around and finds out.”
